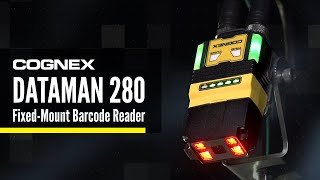

Cognex DataMan 280

Cognex DataMan 280

Premium decoding technology in a compact form factor

Fast decoding, easy setup, and valuable.

  • DataMan 280 Series Features

DataMan 280 series fixed-mount barcode readers offer fast decoding, easy setup, and valuable Industry 4.0 features, like web browser connectivity and performance monitoring, in a small form factor. DataMan 280 was engineered to better track and trace items throughout manufacturing and logistics supply chains solving a broad range of tough 1D, 2D, and direct part mark (DPM) code applications.





  • Solve tough manufacturing and logistics applications

DataMan 280 series was designed to be flexible. The modular hardware and software can be configured to solve any barcode reading challenge. Easily decode difficult DPM codes on challenging automotive and medical device surfaces. Read multiple label-based barcodes simultaneously on boxes and pallets, even behind specular wraps. And accurately read user presented codes with a large depth of focus for speedy handling.





Latest Cognex technology improves code handling and coverage

The latest patented decoding algorithms and technology read low resolution and damaged codes at high speeds, including QR codes. High Dynamic Range (HDR) technology enhances image quality and contrast to improve code handling and enable greater coverage for better efficiency. High-Speed Liquid Lens (HSLL) technology dynamically autofocuses without any mechanical parts to solve high-speed, high-variability applications with fewer cameras in less time.





  • Advanced features enable easy setup and performance monitoring

DataMan 280 combined with Cognex Edge Intelligence (EI)  provides advanced Industry 4.0 features like easy web browser connectivity, device management, and performance monitoring. It allows users to configure multiple devices at once and begin trending important system performance metrics in minutes. Facility managers can identify trends and intervene quickly when dips in performance are spotted.



  • Продуктова гама
Algorithms and Technologies 1DMax, 2DMax, Hotbars, PowerGrid
Image Sensor 1/3" CMOS
Image Sensor Properties Diagonal 4.81 mm, 3.45 μm square pixels
Image Resolution 1440 x 1080 pixels
Electronic Shutter Speed Min. exposure: 29 μs
Max. exposure: Up to 10 ms (internal illumination) / Up to 200 ms (external illumination)
Acquisition Up to 45 Hz
Lens Options 6.2 mm (3 pos or HSLL), 16 mm (manual or HSLL), 6.2 mm UV, 6.2 mm and 16 mm IR, C-Mount accessory
Aimer 2 green aimer LEDs
Discrete Inputs 2 opto-isolated, 2 configurable
Discrete Outputs 2 opto-isolated, 2 configurable
Status Outputs 5 status LEDs, audible beeper, 2 visual indicator lights
Lighting Modular/field configurable lighting: 4 independently controlled high powered LEDs (red, white, blue, IR, UV), band pass filters and polarization filters available
Communications Serial and Ethernet interface
Protocols RS-232, TCP/IP, PROFINET, EtherNet/IP™, SLMP, Modbus TCP, NTP, SFTP, FTP, MRS, CC-Link
Java Scripting enabled for custom protocols
Power 24V +/- 10%
PoE (Power over Ethernet) Class 3
Power Consumption ≤7.5W
Material Zinc alloy/aluminum
Weight 6.2 mm: 141 g; 16 mm: 169 g
Right angle configuration adds 50 g
Dimensions Straight configuration 6.2 mm: 75.5 x 42.4 x 23.6 mm
Straight configuration 16 mm: 90.6 x 42.4 x 23.6 mm
Right angle configuration 6.2 mm: 78.5 x 42.4 x 37.8 mm
Right angle configuration 16 mm: 78.5 x 42.4 x 52.9 mm
Operating Temperature 0–40 °C (32–104 °F)
Storage Temperature -10–60 °C (14–140 °F)
Operating and Storage Humidity <95% non-condensing
Protection IP67
RoHS Certified Yes
Approvals EU CE, US FCC, TUV CB NRTL IEC 61010, Korea KCC, India BIS
