Единна модулна платформа за PAC контролерите Modicon M580 и M340
Всички модули с форм-фактор X80: задни платки, захранвания, цифрови и аналогови входно-изходни модули, I/O модули за безопасност, комуникационни, специализирани модули и др.
- Платформата Modicon X80 I/O се състои от следните устройства:
• Modicon X80 I/O модули
• Modicon X80 специализирани модули (HART модули, теглоизмервателни модули, броячи и т. н.)
• Modicon X80 задни платки (с X-bus или с двоен X-bus + Ethernet профил)
• Самостоятелни или резервни захранвания X80
- Платформата Modicon X80 I/O може да се реализира като Ethernet PAC станция на един или два сървърни шкафа (рака). Слотовете им могат да бъдат оборудвани с:
• Дискретни I/O модули
• Аналогови I/O модули
• Специализирани модули
• Комуникационни модули
• Ethernet Modbus/TCP мрежови компоненти, EtherNet/IP мрежови компоненти
• AS-Interface шини за задвижващи механизми/сензори и RTU (Remote Terminal Unit) модули за комуникация по серийна връзка
• Modbus модули за комуникация по серийна връзка
- Приложения:
• Производствени и други мащабни индустриални отрасли
• Третиране на питейни и отпадъчни води
• Хранително-вкусова промишленост и производство на напитки
• Минна и минерална индустрия, добив и обработка на метали
• Нефтено-газова промишленост
Видео галерия

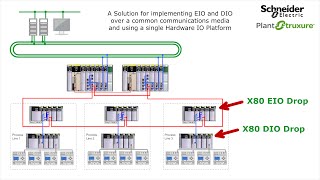

Designing and Implementing Systems to use a mixture of X80 EIO and X80 DIO
| References | |||||||
| Modicon X80 Discrete input modules | |||||||
| Type | Input voltage | Connection via (1) |
IEC/EN 61131-2 conformity |
No. of channels (common x channels per group) |
Reference | Weight kg/lb |
|
| 24 V (positive logic) |
20-way caged, screw clamp, or spring-type removable terminal block | Type 3 | 16 inputs (1 x 16) |
програмируем контролер BMXDDI1602 | 0.115/ 0.254 |
||
| One 40-way connector | Type 1 | 32 inputs (2 x 16) |
програмируем контролер BMXDDI3202K | 0.110/ 0.243 |
|||
| Two 40-way connectors | Non-type | 64 inputs (4 x 16) |
програмируем контролер BMXDDI6402K (1) | 0.145/ 0.320 |
|||
| 24 V (positive/ negative logic) |
20-way caged, screw clamp, or spring-type removable terminal block | Non-type | 16 inputs (1 x 16) |
програмируем контролер BMXDAI1602 | 0.115/ 0.254 |
||
| 12/24 V (positive/ negative logic) |
40-way caged or spring-type removable terminal block | Type 3 | 32 inputs (2 x 16) |
програмируем контролер BMXDDI3232 | 0.137/ 0.302 |
||
| 48 V (positive logic) |
20-way caged, screw clamp, or spring-type removable terminal block | Type 1 | 16 inputs (1 x 16) |
програмируем контролер BMXDDI1603 | 0.115/ 0.254 |
||
| 40-way caged or spring-type removable terminal block | Type 3 | 32 inputs (2 x 16) |
програмируем контролер BMXDDI3203 | 0.137/ 0.302 |
|||
| 125 V (positive logic) |
20-way caged, screw clamp, or spring-type removable terminal block | Non-type | 16 inputs (1 x 16) |
програмируем контролер BMXDDI1604Т | 0.144/ 0.317 |
||
| 24 V | 20-way caged, screw clamp, or spring-type removable terminal block | Type 1 | 16 inputs (1 x 16) |
програмируем контролер BMXDAI1602 | 0.115/ 0.254 |
||
| 48 V | 20-way caged, screw clamp, or spring-type removable terminal block | Type 3 | 16 inputs (1 x 16) |
програмируем контролер BMXDAI1603 | 0.115/ 0.254 |
||
| 100…120 V | 20-way caged, screw clamp, or spring-type removable terminal block | Type 3 | 8 isolated inputs (8 x 1) |
програмируем контролер BMXDAI0814 | 0.115/ 0.254 |
||
| 20-way caged, screw clamp, or spring-type removable terminal block | Type 3 | 16 inputs (1 x 16) |
програмируем контролер BMXDAI1604 | 0.115/ 0.254 |
|||
| 40-way caged or spring-type removable terminal block | Type 1 | 16 isolated inputs | програмируем контролер BMXDAI1614 | 0.157/ 0.346 |
|||
| 40-way caged or spring-type removable terminal block | Non-type at 50 Hz Type 1 at 60 Hz |
16 isolated inputs | програмируем контролер BMXDAI16142 (2) | 0.157/ 0.346 |
|||
| 200…240 V | 20-way caged, screw clamp, or spring-type removable terminal block | Type 2 | 8 inputs (1 x 8) |
програмируем контролер BMXDAI0805 | 0.120/ 0.265 |
||
| 40-way caged or spring-type removable terminal block | Type 1 | 16 isolated inputs | програмируем контролер BMXDAI1615 | 0.157/ 0.346 |
|||
| (1) 64-channel modules have 2 connectors and therefore require 2 connection cables. (2) BMXDAI16142 is optimized for 60Hz application, e.g. Quantum modules, while BMXDAI1614 is compatible for both 50Hz and 60 Hz. |
|||||||
| References | |||||||
| Modicon X80 Discrete output modules | |||||||
| Type | Оutput voltage | Connection via (1) |
IEC/EN 61131-2 conformity |
No. of channels (common x channels per group) |
Reference | Weight kg/lb |
|
| transistor | 24 V (positive logic) |
20-way caged, screw clamp, or spring-type removable terminal block | Yes | 16 inputs (1 x 16) |
програмируем контролер BMXDDO1602 | 0.120/ 0.265 |
|
| 24 V (negative logic) |
20-way caged, screw clamp, or spring-type removable terminal block | Yes | 16 inputs (1 x 16) |
програмируем контролер BMXDDO1612 | 0.120/ 0.265 |
||
| 12...24 V (positive logic) |
40-way caged or spring-type removable terminal block | Yes | 32 inputs (2 x 16) |
програмируем контролер BMXDDO3202 | 0.142/ 0.313 |
||
| 24 V (positive logic) |
One 40-way connector | Yes | 16 inputs (1 x 16) |
програмируем контролер BMXDDO3202K | 0.110/ 0.243 |
||
| Two 40-way connectors | Yes | 64 outputs (4 x 16) |
програмируем контролер BMXDDO6402K (1) | 0.150/ 0.331 |
|||
| triac | 100…240 V | 20-way caged, screw clamp, or spring-type removable terminal block | Yes | 16 outputs (4 x 4) |
програмируем контролер BMXDAO1605 | 0.140/ 0.309 |
|
| 24…240 V | 40-way caged or spring-type removable terminal block | Yes | 16 isolated outputs |
програмируем контролер BMXDAO1615 | 0.250/ 0.551 |
||
| relay | 100…150 V | 20-way caged, screw clamp, or spring-type removable terminal block | Yes | 8 normally open isolated relay outputs |
програмируем контролер BMXDDI3203 | 0.178/ 0.392 |
|
| relay | 24...125 V 24...240 V |
20-way caged, screw clamp, or spring-type removable terminal block | Yes | 8 normally open isolated relay outputs |
програмируем контролер BMXDRA0815 | 0.210/ 0.463 |
|
| 24 V 24…240 |
20-way caged, screw clamp, or spring-type removable terminal block | Yes | 16 normally open relay outputs (2 x 8) |
програмируем контролер BMXDRA1605 | 0.150/ 0.331 |
||
| 5...125 V 24…240 |
40-way caged or spring-type removable terminal block | Yes | 8 normally open and normally closed isolated relay outputs |
програмируем контролер BMXDRC0805 | 0.189/ 0.417 |
||
| Modicon X80 Discrete mixed I/O modules | |||||||
| Type | Voltage | Connection via | IEC/EN 61131-2 conformity |
No. of channels (common x channels per group) |
Reference | Weight kg/lb |
|
| Inputs/ Outputs | Inputs/ Outputs | Inputs/ Outputs | Inputs/ Outputs | ||||
| transistor |
24 V/ 24 V (positive logic) |
20-way caged, screw clamp, or spring-type removable terminal block | Type 3 Yes |
8 (1 x 8)/ 8 (1 x 8) |
програмируем контролер BMXDDM16022 | 0.115/ 0.254 |
|
| relay | 24 V/ 24...240 V (positive logic) | 20-way caged, screw clamp, or spring-type removable terminal block | Type 3 Yes | 8 (1 x 8)/ 8 (1 x 8) | програмируем контролер BMXDDM16025 | 0.135/ 0.298 |
|
| transistor | 24 V/ 24 V (positive logic) | One 40-way connector | Type 1 Yes | 16 (1 x 16)/ 16 (1 x 16) | програмируем контролер BMXDDM3202K | 0.110/ 0.243 |
|
| (1) 64-channel modules have 2 connectors and therefore require 2 connection cables. | |||||||
