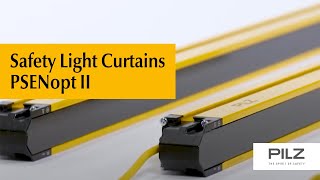

Pilz PSENopt ll Light curtains

Pilz PSENopt ll Light curtains

PSENopt ll Светлинни бариери

As the units are so robust, PSENopt II sensors provide protection against shock, collision and vibration and so are suitable for use in rugged industrial environments. The operator can evaluate the essential causes and system defects responsible for the machine stop by means of the LEDs. Downtimes are reduced as a result. In combination with the configurable control system PNOZmulti 2 you have a safe, complete, one-stop solution. Compatible accessories range from installation assistance through to mirror columns.

  • Характеристики

• Highly robust for protection against shock, collision and vibration;

• User-friendly diagnostics via LEDs to reduce downtimes;

• Fast, simple assembly, installation and commissioning;

• Coding for greater flexibility when installing the light curtain sensors;

• Securing several sides of a danger zone with PSENopt II mirror columns;

• Adjustable base unit offers additional protection against strong mechanical impact and enables the mirror column to be adjusted in uneven conditions.

• Available in lengths from 150 mm to 1800 mm;

• One-stop shop: complete economical solution with configurable control systems PNOZmulti 2, plus a wide range of accessories.



  • Съответствие със стандарти

• EN/IEC 61496-1: Type 3
• IEC 61508: SIL 2
• EN/IEC 61496-3



  • Основни параметри:

Номинално напрежение  24 VDC
Работна температура 0°C…+55°C
Работна височина  0...2000 m ((6561.6 ft)
Сертификати на продукти CE marking
cULus Listed
