Pilz PSENslock Safety gate system

Pilz PSENslock Safety gate system

Pilz PSENslock система за безопасност на врати

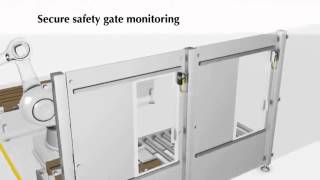

Non-contact safety gate systems PSENslock combine safety gate monitoring with a non-contact magnetic interlock in just a single unit.

  • PSENslock areavailable in three different function types. In addition to the basic version, the following types are also available:

• PSENslock with expanded diagnostic functions (Version 6.1): The safety gate system permits quick easy diagnostics if several PSENslock are used in one application. You can immediately recognise which switch was unable to activate guard locking and save time in the event of an error.

• PSENslock with safety outputs that are independent of guard locking (Versions 3.1/4.1/4.2): The safety outputs (OSSDs) on the safety gate system switch independently from the guard locking status and enable greater flexibility when implementing your application.


  • Характеристики:

• Secure safety gate monitoring for the highest safety requirements

• High availability for your plant:

- Highest level of manipulation protection (coding)

- Process protection via magnetic guard locking

• Rapid commissioning:

- 4 assembly directions

- Tolerant to gate misalignment

- Flexible connection via connector

• User-friendly diagnostics via double-sided LED display

• Saves power, as the magnet on PSENslock is optimized for energy efficiency


  • Съответствие със стандарти:

EN/IEC 62061

• EN 60947-5-3

• EN/IEC 61496-3


  • Основни параметри:
Номинално напрежение 24 VDC
Работна температура -25°C…+70°C
Работна височина 0...2000 m (6561.6 ft)
Сертификати на продукти CE marking
cULus Listed
