Релета за автоматизация
Температурните контролери на Autonics управляват чрез получаване на входен електрически сигнал от температурния сензор и сравнява настройките с температурната стойност, за да осигури сигнал за настройка на контролера.
- Продуктова гама и храктеристики
ON/OFF, P контол
• стандартен тип – серия T3/T4
• аналогови – серия TA, серия TO
• тип замразяване/размразяване – серия TC3YF
PID контол
• стандартен тип – серия TK, серия TC, серия TCN, серия TZ, серия TZN
• модулен тип – серия TМ
• икономичен тип – серия TC, серия TCN
• за монтаж в табло – серия TB42
Индикатори
• Индикатори – серия T3xI, серия T4xI, серия T4WM
- Ползи
• висока производителност
• разнообразие от размери и типове на приложение
• множество от входящи и изходящи величини
• широк LED дисплей с подобрена видимост и висока яркост
- Приложения
• всички възможни приложения за качествено регулиране на температурата
Series |
Температурен контролер TN Series |
||
Power supply |
100 - 240 VACᜠ, 50/60 Hz ±10% |
||
Power consumption |
≤ 8 VA |
||
Display type |
11 segment, LCD type (operating value display part: 7 segment) |
||
Sampling period |
50 / 100 / 250 ms (parameter) |
||
Input specification |
Refer to Autonics website |
||
Option input |
CT Relay |
• 0.0-50.0 A (primary current measurement range) • CT ratio: 1/1,000 • Measurement accuracy: ±5% F.S. ±1digit |
|
250 VACᜠ 3A 1a |
|||
Control output |
|||
SSR |
12 VDCᜡ ±2 V, ≤ 20 mA |
||
Current |
DC 0 - 20 mA or DC 4 - 20 mA (parameter), Load resistance: ≤ 500 Ω |
||
Option output |
Alarm |
250 VACᜠ 3 A 1a |
|
Transmission |
DC 4 - 20 mA (load resistance: ≤ 500 Ω, output accuracy: ±0.3% F.S.) |
||
Communication |
RS485 |
||
Control type |
Type |
ON/OFF, P, PI, PD, PID |
|
Multi SV |
≤ 4 SV |
||
Group PID |
≤ 8 group |
||
Zone PID |
4 zones |
||
ARW (Anti Reset Windup) |
50 to 200 % |
||
Program control |
Program |
≤ 10 patterns |
|
Step |
≤ 200 steps (1 pattern: ≤ 20 steps) |
||
Setting type |
Time setting |
||
Hysteresis |
• Thermocouple, RTD: 1 to 100 (0.1 to 100.0) ℃/℉ • Analog: 1 to 100 digit |
||
Proportional band (P) |
0.1 to 999.9 ℃ (0.1 to 999.9%) |
||
Integral time (I) |
0 to 9,999 sec |
||
Derivative time (D) |
0 to 9,999 sec |
||
Control cycle (T) |
• Relay / SSRP output: 0.1 to 120.0 sec • Selectable current or SSR drive output: 1.0 to 120.0 sec |
||
Manual reset |
0.0 to 100.0% |
||
Dielectric strength |
Between the charging part and the case: 3,000 VACᜠ 50/60 Hz for 1 min |
||
Vibration |
0.75 mm amplitude at frequency of 5 to 55 Hz (for 1 min) in each X, Y, Z direction for 2 hours |
||
Relay life cycle |
Mechanical |
• OUT1/2: ≥ 5,000,000 operations • AL1/2/3/4/5/6: ≥ 20,000,000 operations |
|
Electrical |
• OUT1/2: ≥ 200,000 operations • AL1/2/3/4/5/6: ≥ 100,000 operations |
||
Insulation resistance |
≥ 100 MΩ (500 VDCᜡ megger) |
||
Insulation type |
Double insulation or reinforced insulation (mark: ▱, dielectric strength between the measuring input part and the power part: 3 kV) |
||
Noise immunity |
|||
Memory retention |
≈ 10 years (non-volatile semiconductor memory type) |
||
Ambient temperature |
-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
||
Ambient humidity |
35 to 85%RH |
||
Protection structure |
IP65 (Front panel, IEC standards) |
||
Loader port |
• TNS: top side |
• TNH, TNL: front side |
|
Accessory |
Bracket |
||
Unit weight (packaged) |
• TNS: ≈ 128 g (≈ 156 g) • TNH: ≈ 184 g (≈ 286 g) • TNL: TNL: ≈ 301 g (≈ 443 g) |
||
Approval |
|
||
Comm. protocol |
Modbus RTU/ASCII, Sync-Master, PLC ladderless |
Series |
TX Series |
|
Power supply |
100 - 240 VACᜠ 50/60 Hz ±10% |
|
Power consumption |
≤ 8 VA |
|
Sampling period |
50 ms |
|
Input specification |
Refer to Autonics website |
|
Control output |
Relay |
250 VACᜠ 3 A, 30 VDCᜡ 3 A, 1a |
SSR |
TX4S: 12 VDCᜡ ±2 V, ≤ 20 mA TX4M/H/L: 13 VDCᜡ ±3 V, ≤ 20 mA |
|
Current |
DC 4-20 mA or DC 0-20 mA (parameter), Load resistance: ≤ 500 Ω |
|
Alarm output |
Relay |
AL1/2: 250 VACᜠ 3 A 1a |
Option output |
PV transmission |
DC 4 - 20 mA (Load resistance: ≤ 500 Ω, Output Accuracy: ±0.3% F.S.) |
RS485 Comm. |
Modbus RTU |
|
Display type |
11 Segment (Red, Green, Yellow), LCD type |
|
Control type |
Heating, Cooling |
ON/OFF, P, PI, PD, PID Control |
Heating& Cooling |
||
Hysteresis |
1 to 100 (0.1 to 50.0) ℃/℉ |
|
Proportional band (P) |
0.1 to 999.9 ℃/℉ |
|
Integral time (I) |
0 to 9,999 sec |
|
Derivative time (D) |
0 to 9,999 sec |
|
Control cycle (T) |
0.5 to 120.0 sec |
|
Manual reset |
0.0 to 100.0% |
|
Relay life cycle |
Mechanical |
≥ 5,000,000 operations |
Electrical |
≥ 200,000 operations (resistance load: 250 VACᜠ 3 A) |
|
Dielectric strength |
Between all terminals and case: 3,000 VACᜠ 50/60 Hz for 1 min |
|
Vibration |
0.75 mm amplitude at frequency 5 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
|
Insulation resistance |
≥ 100 MΩ (500 VDCᜡ megger) |
|
Noise immunity |
±2 kV square shaped noise (pulse width 1 ㎲) by noise simulator R-phase, S-phase |
|
Memory retention |
≈ 10 years (non-volatile semiconductor memory type) |
|
Ambient temperature |
-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
|
Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation) |
|
Protection structure |
IP50 (Front panel, IEC standards) |
|
Insulation type |
Double or reinforced insulation (mark: ▱, dielectric strength between primary circuit and secondary circuit: 3 kV) |
|
Approval |
|
|
Unit weight (packaged) |
• TX4S: ≈ 87 g (≈ 146 g) • TX4M: ≈ 143 g (≈ 233 g) • TX4H: ≈ 133 g (≈ 214 g) • TX4L: ≈ 206 g (≈ 290 g) |
|
Comm. protocol |
Modbus RTU |
Series |
Температурен контролер TK4N |
Температурен контролер TK4SP |
Температурен контролер TK4S |
Температурен контролер TK4M |
|
Power supply |
AC type |
100 - 240 VACᜠ 50/60 Hz ±10% |
|||
AC/DC type |
- |
24 VACᜠ 50/60 Hz ±10%, 24-48 VDCᜡ ±10% |
|||
Power consumption |
AC type |
≤ 6 VA |
≤ 8 VA |
||
AC/DC type |
- |
AC: ≤ 8 VA, DC ≤ 5W |
|||
Unit weight (packaged) |
≈ 70 g (≈ 140 g) |
≈ 85 g (≈ 130 g) |
≈ 105 g (≈ 150 g) |
≈ 140 g (≈ 210 g) |
Series |
Температурен контролер TK4W |
Температурен контролер TK4H |
Температурен контролер TK4L |
|
Power supply |
AC type |
100 - 240 VACᜠ 50/60 Hz ±10% |
|
|
AC/DC type |
24 VACᜠ 50/60 Hz ±10%, 24-48 VDCᜡ ±10% |
|
||
Power consumption |
AC type |
≤ 8 VA |
|
|
AC/DC type |
AC: ≤ 8 VA, DC ≤ 5W |
|
||
Unit weight (packaged) |
≈ 141 g (≈ 211 g) |
≈ 141 g (≈ 211 g) |
≈ 198 g (≈ 294 g) |
Sampling period |
50 ms |
|
Input specification |
Refer to Autonics website |
|
Option input |
CT input |
• 0.0-50.0 A (primary current measurement range) • CT ratio: 1/1,000 • Measurement accuracy: ±5% F.S. ±1digit |
Digital input |
• Contact - ON: ≤ 2 kΩ, OFF: ≥ 90 kΩ • Non contact - residual voltage ≤ 1.0 V, leakage current ≤ 0.1 mA • Outflow current: ≈ 0.5 mA per input |
|
Control output |
Relay |
250 VACᜠ 3 A, 30 VDCᜡ 3 A 1a |
SSR |
11 VDCᜡ±2 V, ≤ 20 mA |
|
Current |
DC 4-20 mA or DC 0-20 mA (parameter), Load resistance: ≤ 500 Ω |
|
Alarm output |
Relay |
AL1, AL2: 250 VACᜠ 3 A 1a • TK4N AL2: 250 VACᜠ 0.5 A 1a (≤ 125 VA) |
Option output |
Transmission |
DC 4 - 20 mA (Load resistance: ≤ 500 Ω, Output accuracy: ±0.3% F.S.) |
RS485 comm. |
Modbus RTU |
|
Display type |
7 segment (red, green, yellow), LED type |
|
Control type |
Heating, Cooling |
ON/OFF, P, PI, PD, PID Control |
Heating & Cooling |
||
Hysteresis |
• Thermocouple, RTD: 1 to 100 (0.1 to 100.0) ℃/℉ • Analog: 1 to 100 digit |
|
Proportional band (P) |
0.1 to 999.9 ℃/℉ (0.1 to 999.9%) |
|
Integral time (I) |
0 to 9,999 sec |
|
Derivative time (D) |
0 to 9,999 sec |
|
Control cycle (T) |
• Relay output, SSR drive output: 0.1 to 120.0 sec • Selectable current or SSR drive output: 1.0 to 120.0 sec |
|
Manual reset |
0.0 to 100.0% |
|
Relay life cycle |
Mechanical |
AL1/2: ≥ 20,000,000 operations (TK4H/W/L: ≥ 5,000,000 operations) |
Electrical |
≥ 100,000 operations |
|
Dielectric strength |
Between power source terminal and input terminal: 2,000 VACᜠ 50/60 Hz for 1 min |
|
Vibration |
0.75 mm amplitude at frequency of 5 to 55 Hz (for 1 min) in each X, Y, Z direction for 2 hours |
|
Insulation resistance
Noise immunity |
≥ 100 MΩ (500 VDCᜡ megger) |
|
±2 kV square shaped noise by noise simulator (pulse width: 1 ㎲) R-phase, S-phase | ||
Memory retention |
≈ 10 years (non-volatile semiconductor memory type) |
|
Ambient temperature |
-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
|
Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation) |
|
Protection structure |
IP65 (Front panel, IEC standards) • TK4SP: IP50 (Front panel, IEC standards) |
|
Insulation type |
Double insulation or reinforced insulation (mark: ▱, dielectric strength between the measuring input part and the power part: 2 kV) |
|
Accessory |
Bracket, Terminal protection cover (TK4N) |
|
Approval |
|
|
Comm. protocol |
Modbus RTU |
Series |
Температурен контролер KPN Series |
|
Power supply |
100 - 240 VACᜠ 50/60 Hz |
|
Power consumption |
≤ 15 VA |
|
Sampling period |
50 ms |
|
Input specification |
Refer to Autonics website |
|
Option input |
CT input |
• 0.0-50.0 A (primary current measurement range) • CT ratio: 1/1,000 |
Remote SV |
1 - 5 VDCᜡ or 4 - 20 mA (Current Input: External resistance 250 Ω) |
|
Digital input |
• Contact - ON: ≤ 2 kΩ, OFF: ≥ 90 kΩ • Non contact - residual voltage ≤ 1.0 V, leakage current ≤ 0.1 mA |
|
Control output |
Relay
SSR Current
Relay
Transmission |
250 VACᜠ 5 A 1a |
11 VDCᜡ±2 V, ≤ 20 mA DC 4-20 mA or DC 0-20 mA (parameter), load resistance: ≤ 500 Ω |
||
Alarm output |
250 VACᜠ 3 A 1a |
|
Option output |
DC 4 - 20 mA ( load resistance: ≤ 500 Ω, output accuracy: ±0.3% F.S. ±1-digit) |
|
RS485 Comm. |
Modbus RTU |
|
Display type |
7 segment (red, green), control output bar graph (red, green), LED type |
|
Control type |
Heating, Cooling |
ON/OFF, P, PI, PD, PID Control |
Heating & Cooling |
||
Hysteresis |
• Thermocouple, RTD: 1 to 100 (0.1 to 100.0) ℃/℉ • Analog: 1 to 100 digit |
|
Proportional band (P) |
0.1 to 999.9 ℃/℉ (0.1 to 999.9%) |
|
Integral time (I) |
0 to 9,999 sec |
|
Derivative time (D) |
0 to 9,999 sec |
|
Control cycle (T) |
• 0.1 to 120.0 sec [relay output model] • 1.0 to 120.0 sec [SSR drive output model] |
|
Manual reset |
0.0 to 100.0% |
|
Relay life cycle |
Mechanical |
≥ 10,000,000 operations |
Electrical |
≥ 100,000 operations (load resistance: 250 VACᜠ 3 A) |
|
Dielectric strength |
Between power source terminal and input terminal: 2,000 VACᜠ 50/60 Hz for 1 min |
|
Vibration |
0.75 mm amplitude at frequency of 5 to 55 Hz (for 1 min) in each X, Y, Z direction for 2 hours |
|
Insulation resistance |
≥ 100 MΩ (500 VDCᜡ megger) |
|
Noise immunity |
±2 kV square shaped noise (pulse width 1 ㎲) by noise simulator R-phase, S-phase |
|
Memory retention |
≈ 10 years (non-volatile semiconductor memory type) |
|
Ambient temperature |
-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
|
Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation) |
|
Protection structure |
IP65 (front panel, IEC standards) |
|
Insulation type |
Double or reinforced insulation (mark: ▱, dielectric strength between the measuring input part and the power part: 2 kV) |
|
Accessory |
Bracket |
|
Approval |
|
|
Unit weight (packaged) |
• KPN52□-□: ≈ 160 g (≈ 230 g) • KPN53□-□: ≈ 160 g (≈ 230 g) • KPN55□-□: ≈ 220 g (≈ 316 g) |
|
Comm. protocol |
Modbus RTU |
Series |

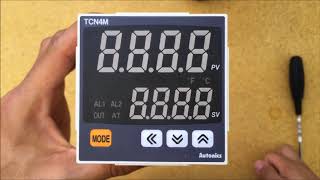

Температурен контролер TCN4□-22□-□ |
Температурен контролер TCN4□-24□-□ |
|
Power supply |
24 VACᜠ 50/60 Hz ±10% 24 - 48 VDCᜡ ±10% |
100 - 240 VACᜠ 50/60 Hz ±10% |
|
Power consumption |
AC: ≤ 5 VA, DC: ≤ 3 W |
≤ 5 VA |
|
Sampling period |
100 ms |
||
Input specification |
Refer to Autonics website |
||
Control output |
Relay |
250 VACᜠ 3A, 30 VDCᜡ 3A, 1a |
|
SSR |
12 VDCᜡ±2 V, ≤ 20 mA |
||
Alarm output |
250 VACᜠ 1 A 1a |
||
Display type |
7 Segment (red, green), LED type |
||
Control type |
Heating, Cooling |
ON/OFF, P, PI, PD, PID Control |
|
Hysteresis |
1 to 100 (0.1 to 50.0) ℃/℉ |
||
Proportional band (P) |
0.1 to 999.9 ℃/℉ |
||
Integral time (I) |
0 to 9,999 sec |
||
Derivative time (D) |
0 to 9,999 sec |
||
Control cycle (T) |
0.5 to 120.0 sec |
||
Manual reset |
0.0 to 100.0% |
||
Relay life cycle |
Mechanical |
≥ 5,000,000 operations |
|
Electrical |
OUT1/2: ≥ 200,000 operations (load resistance: 250 VACᜠ 3 A ) AL1/2: ≥ 300,000 operations (load resistance: 250 VACᜠ 1 A ) |
||
Dielectric strength |
Between input terminal and power terminal: 1,000 VACᜠ 50/60 Hz for 1 min |
Between input terminal and power terminal: 2,000 VACᜠ 50/60 Hz for 1 min |
|
Vibration |
0.75 mm amplitude at frequency of 5 to 55 Hz (for 1 min) in each X, Y, Z direction for 2 hours |
||
Insulation resistance |
≥ 100 MΩ (500 VDCᜡ megger) |
||
Noise immunity |
±2 kV square shaped noise (pulse width: 1 ㎲) by noise simulator R-phase, S-phase |
||
Memory retention |
≈ 10 years (non-volatile semiconductor memory type) |
||
Ambient temperature |
-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
||
Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation) |
||
Insulation type |
Mark: ▱, double or reinforced insulation (dielectric strength between the measuring input part and the power part: 1 kV) |
Mark: ▱, double or reinforced insulation (dielectric strength between the measuring input part and the power part: 2 kV) |
|
Approval |
|
||
Unit weight (packaged) |
• TCN4S: ≈ 100 g (≈ 147 g) • TCN4M: ≈ 133 g (≈ 203 g) • TCN4H: ≈ 124 g (≈ 194 g) • TCN4L: ≈ 179 g (≈ 275 g) |
Series |
Температурен контролер TC4□-□2□ |
Температурен контролер TC4□-□4□ |
|
Power supply |
24 VACᜠ 50/60 Hz ±10% 24-48 VDCᜡ ±10% |
- 240 VACᜠ 50/60 Hz ±10% |
|
Power consumption |
AC: ≤ 5 VA, DC: ≤ 3 W |
≤ 5 VA |
|
Sampling period |
ms |
||
Input specification |
Refer to Autonics website |
||
Control output |
Relay |
VACᜠ 3 A, 30 VDCᜡ 3 A, 1a |
|
SSR |
VDCᜡ±2 V, ≤ 20 mA |
||
Alarm output |
VACᜠ 1 A 1a |
||
Display type |
Segment (red, green, yellow), LED type |
||
Control type |
Heating, Cooling |
ON/OFF, P, PI, PD, PID Control |
|
Hysteresis |
to 100 (0.1 to 50.0) ℃/℉ |
||
Proportional band (P) |
0.1 to 999.9 ℃/℉ |
||
Integral time (I) |
to 9,999 sec |
||
Derivative time (D) |
to 9,999 sec |
||
Control cycle (T) |
0.5 to 120.0 sec |
||
Manual reset |
0.0 to 100.0% |
||
Relay life cycle |
Mechanical |
OUT1/2, AL1/2: ≥ 5,000,000 operations |
|
Electrical |
OUT1/2: ≥ 200,000 operations (load resistance: 250 VACᜠ 3A) AL1/2: ≥ 300,000 operations (load resistance: 250 VACᜠ 1 A ) |
||
Dielectric strength |
Between input terminal and power terminal: 1,000 VACᜠ 50/60 Hz for 1 min |
Between input terminal and power terminal: 2,000 VACᜠ 50/60 Hz 1 min |
|
Vibration |
0.75 mm amplitude at frequency 5 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
||
Insulation resistance |
≥ 100 MΩ (500 VDCᜡ megger) |
||
Noise immunity |
Square shaped noise (pulse width: 1 ㎲) by noise simulator ±2 kV R-phase, S-phase |
||
Memory retention |
≈ 10 years (non-volatile semiconductor memory type) |
||
Ambient temperature |
-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
||
Ambient humidity |
to 85%RH, storage: 35 to 85%RH (no freezing or condensation) |
||
Insulation type |
Mark: ▱, double or reinforced insulation (dielectric strength between the measuring input part and the power part: 1 kV) |
Mark: ▱, double or reinforced insulation (dielectric strength between the measuring input part and the power part: 2 kV) |
|
Approval |
|
||
Unit weight (packaged) |
• TC4S: ≈ 94 g (≈ 141 g) • TC4SP: ≈ 76 g (≈ 123 g) • TC4Y: ≈ 85 g (≈ 174 g) • TC4M: ≈ 133 g (≈ 204 g) |
Series |
Температурен контролер TA Series |
|
Power supply |
100 - 240 VACᜠ 50/60 Hz ±10% |
|
Power consumption |
≤ 4 VA |
|
Sampling period |
100 ms |
|
Input specification |
• RTD: DPt100Ω (allowable line resistance per a wire: ≤5 Ω) • Thermocouple: K (CA), J (IC) |
|
Control output |
Relay |
250 VACᜠ 3 A, 30 VDCᜡ 1 A 1c |
SSR |
12 VDCᜡ±2 V, ≤ 20 mA |
|
Display type |
PV deviation, Error display (red, green), LED type |
|
Setting method |
Front dial |
|
Setting accuracy |
• At room temperature (23 ℃ ±5 ℃) Over 100 ℃ model: F.S.±2%, below 100 ℃ model: F.S.±3% • Out of room temperature range Over 100 ℃ model: F.S.±3%, below 100 ℃ model: F.S.±4% |
|
Control type |
ON / OFF |
Hysteresis: 2℃ (fixed) |
PID Control |
Control cycle: relay output 20 sec / SSR drive output 2 sec |
|
Relay life cycle |
Mechanical |
≥ 10,000,000 operations (18,000 operations/time) |
Electrical |
≥ 100,000 operations (900 operations/time) |
|
Dielectric strength |
Between input terminal and power terminal: 2,000 VACᜠ 50/60 Hz for 1 min |
|
Vibration |
0.75 mm amplitude at frequency of 5 to 55 Hz (for 1 min) in each X, Y, Z direction for 2 hours |
|
Insulation resistance |
≥ 100 MΩ (500 VDCᜡ megger) |
|
Noise immunity |
Square shaped noise (pulse width: 1 ㎲) by noise simulator ±2 kV R-phase, S-phase |
|
Memory retention |
≈ 10 years (non-volatile semiconductor memory type) |
|
Ambient temperature |
-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
|
Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation) |
|
Insulation type |
Double or reinforced insulation (mark: ▱, dielectric strength between the measuring input part and the power part: 2 kV) |
|
Approval |
|
|
Unit weight (packaged) |
• TAS: ≈ 69 g (≈ 107 g) • TAM: ≈ 109 g (≈ 171 g) • TAL: ≈ 147 g (≈ 232 g) |
Series |
Температурен контролер TF3 Series |
|
Power supply |
AC |
100 - 240 VACᜠ 50/60 Hz ±10% |
AC / DC |
24 VACᜠ 50/60 Hz ±10%, 12-24 VDCᜡ ±10% |
|
Power consumption |
AC |
≤ 8 VA |
AC / DC |
AC: ≤ 5 VA, DC: ≤ 3 W |
|
Sampling period |
500 ms |
|
Input specification |
Refer to Autonics website |
|
Option input |
Digital input |
• Contact - ON: ≤ 1 kΩ, OFF: ≥ 100 kΩ • Non contact - residual voltage ≤ 1 V, leakage current ≤ 1 mA Outflow current: ≈ 4 uA |
Control output |
Compressor (COMP) |
250 VACᜠ 5 A / 30 VDCᜡ 5 A / 1a 250 VACᜠ 16 A / 24 VDCᜡ 16 A / 1c 250 VACᜠ 20 A 1a |
Defrost (DEF) |
250 VACᜠ 10 A / 24 VDCᜡ 10 A / 1a |
|
Auxiliary (AUX) |
250 VACᜠ 5 A / 30 VDCᜡ 5 A / 1a |
|
RS485 communication |
Modbus RTU |
|
Display type |
7 segment (red), LED type |
|
Control type |
ON/OFF Control |
|
Hysteresis |
0.5 to 5.0 ℃, 2 to 10 ℉ |
|
Relay life cycle |
Mechanical |
• COMP (5 A 1a), AUX: ≥ 5,000,000 operations • COMP (16 A 1c), DEF: ≥ 20,000,000 operations • COMP (20 A 1a): ≥ 10,000,000 operations |
Electrical |
• COMP (5 A 1a), AUX: ≥ 50,000 operations (load resistance: 250 VACᜠ 5 A) • COMP (16 A 1c): ≥ 30,000 operations (load resistance: 250 VACᜠ 16 A) • COMP (20 A 1a): ≥ 100,000 operations (load resistance: 250 VACᜠ 20 A) • DEF: ≥ 100,000 operations (load resistance: 250 VACᜠ 10 A) |
|
Dielectric strength |
AC |
Between all terminals and case, power and input circuit: 3,000 VACᜠ 50 / 60 Hz for 1 min |
AC / DC |
Between all terminals and case, power and input circuit: 1,000 VACᜠ 50 / 60 Hz for 1 min |
|
Vibration |
1.5 mm amplitude at frequency of 10 to 55 Hz (for 1 min) in each X, Y, Z direction for 2 hours |
|
Insulation resistance |
≥ 100 MΩ (500 VDCᜡ megger) |
|
Noise immunity |
Square shaped noise by noise simulator (pulse width 1 ㎲) ±2 kV R-phase, S-phase |
|
Memory retention |
≈ 10 years (non-volatile semiconductor memory type) |
|
Ambient temperature |
-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
|
Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation) |
|
Protection structure |
IP65 (front panel, IEC standards) |
|
Approval |
|
|
Unit weight (packaged) |
≈ 105 g (≈ 207 g) |
|
Comm. protocol |
Modbus RTU |
Series |
Температурен контролер TC3YF Series |
||
Power supply |
AC |
100 - 240 VACᜠ 50/60 Hz |
|
DC |
12-24 VDCᜡ |
||
Allowable voltage range |
90 to 110% of rated voltage |
||
Power consumption |
AC |
≤ 4 VA |
|
DC |
≤ 8 W |
||
Sampling period |
500 ms |
||
Input specification |
Refer to Autonics website |
||
Display accuracy |
At room temperature (23 ±5 ℃): (PV ±0.5% or 1 ℃ higher one) rdg ±1 digit Out of room temperature range: (PV ±0.5% or 1 ℃ higher one) rdg ±1 ℃ |
||
Control output |
Compressor (COMP) |
250 VACᜠ 5 A 1a, 30 VDCᜡ 5 A 1a |
|
Defrost (DEF) |
250 VACᜠ 10 A 1a |
||
Evaporationfan (FAN) |
250 VACᜠ 5 A 1a, 30 VDCᜡ 5 A 1a |
||
Display type |
7 segment (red), LED type |
||
Control type |
ON/OFF Control |
||
Hysteresis |
0.5 to 5.0 ℃, 2 to 50 ℉ |
||
Relay life cycle |
Mechanical |
≥ 20,000,000 operations |
|
Electrical |
• COMP, DEF: ≥ 50,000 operations (load resistance: 250 VACᜠ 5 A) • FAN ≥ 100,000 operations (load resistance: 250 VACᜠ 10 A) |
||
Dielectric strength |
Between all external terminals and case: 2,000 VACᜠ 60 Hz for 1 min |
||
Vibration |
0.75 mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
||
Malfunction vibration |
0.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 10 min |
||
Insulation resistance |
≥ 100 MΩ (500 VDCᜡ megger) |
||
Noise immunity |
AC |
±2 kV square shaped noise (pulse width 1 ㎲) by noise simulator R-phase, S-phase |
|
DC |
±500 V square shaped noise (pulse width 1 μs) by noise simulator R-phase, S-phase |
||
Memory retention |
≈ 10 years (non-volatile semiconductor memory type) |
||
Ambient temperature |
-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
||
Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation) |
||
Protection structure |
IP65 (Front panel, IEC standards) |
||
Approval |
AC |
|
|
DC |
|
||
Unit weight (packaged) |
≈ 143 g (≈ 229 g) |
Model |
Температурен контролер TH4M-24R |
|
Power supply |
100 - 240 VACᜠ 50/60 Hz ±10% |
|
Power consumption |
≤ 8 VA |
|
Sampling period |
1 sec |
|
Display accuracy |
Temperature
Humidity |
• At room temperature (25 ℃ ±5 ℃): ≤ ±1.0 ℃ • Out of room temperature range: ≤ ±2.0 ℃
• At room temperature (25 ℃ ±5 ℃): ≤ ±3.0%RH (20 to 90%RH ), ≤ ±5.0%RH (below 20%RH, over 90%RH) |
Display range |
Temperature |
-20.0 to 60.0 ℃ |
Humidity |
10.0 to 100.0%RH |
|
Using range |
Temperature |
-20.0 to 60.0 ℃ |
Humidity |
10.0 to 100.0%RH |
|
Control output 01) |
Temperature (OUT1) |
Relay: 250 VACᜠ 3 A, 30 VDCᜡ 3 A, 1a |
Humidity (OUT2) |
Relay: 250 VACᜠ 3 A, 30 VDCᜡ 3 A, 1a |
|
Alarm output |
Relay |
AL1/2: 250 VACᜠ 3 A, 1a |
Display type 02) |
11-Segment (temperature: white, humidity: blue), other display (yellow) LCD type |
|
Control type |
ON/OFF control |
|
Relay life cycle |
Mechanical |
≥ 5,000,000 operations |
Electrical |
≥ 200,000 operations (resistance load: 250 VACᜠ 3 A) |
|
Dielectric strength |
Between primary circuit and secondary circuit: 3,000 VACᜠ 50/60 Hz for 1 min |
|
Vibration |
0.75 mm amplitude at frequency 5 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
|
Insulation resistance |
≥ 100 MΩ (500 VDCᜡ megger) |
|
Noise immunity |
±2 kV square shaped noise (pulse width 1 ㎲) by noise simulator R-phase, S-phase |
|
Memory retention |
≈ 10 years (non-volatile semiconductor memory type) |
|
Ambient temperature |
-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
|
Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation) |
|
Insulation type |
Double or reinforced insulation (mark: ▱, dielectric strength between primary circuit and secondary circuit: 3 kV) |
|
Approval |
|
|
Unit weight |
≈ 144 g |
|
02) When using the unit at low temperature (below 0℃), display cycle is slow. |
Model |
Температурен контролер THD-RM |
|
Power supply |
3.3 VDC ±2% |
|
Power consumption |
≤ 1.3mA |
|
Response time |
15 sec |
|
Sensing accuracy |
Temperature |
• At room temperature (25 ℃ ±5 ℃): ≤ ±1.0 ℃ • Out of room temperature: ≤ ±2.0 ℃ |
Humidity |
• At room temperature (25 ℃ ±5 ℃): ≤ ±3.0%RH (20 to 90%RH ), ≤ ±5.0%RH (below 20%RH, over 90%RH) • Out of room temperature: ≤ ±5.0%RH (all range) |
|
Sensing range |
Temperature |
-20.0 to 60.0 ℃ |
Humidity |
10.0 to 100.0%RH |
|
Communication type |
I2C communication output |
|
Dielectric strength |
Between primary circuit and case: 500 VACᜠ 50/60 Hz for 1 min |
|
Vibration |
0.75 mm amplitude at frequency 5 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
|
Ambient temperature |
-20 to 60 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
|
Ambient humidity |
0 to 100%RH, storage: 35 to 85%RH (no freezing or condensation) |
|
Cable |
Ø4 mm, 4 seam , 2 m (tensile strength: 1kgf/s) |
|
Approval |
|
|
Unit weight |
≈ 56 g |
Series |
Температурен контролер T3/T4 Series, Thumbwheel Switch |
|
Power supply |
100 - 240 VACᜠ 50/60 Hz ±10% |
|
Power consumption |
≤ 5 VA |
|
Sampling period |
100 ms |
|
Input specification |
Refer to Autonics website |
|
Display accuracy (01) |
• At room temperature (23 ℃ ±5 ℃): (PV ±0.5% or ±1℃ higher one) ±1 digit • Out of room temperature range: (PV ±0.5% or ±2 ℃ higher one) ±1 digit |
|
Control output |
Relay (02) |
OUT1: 250 VACᜠ 5 A / 30 VDCᜡ 5A 1c, OUT2: 250 VACᜠ 2 A / 30 VDCᜡ 2A 1c |
SSR |
12 VDCᜡ±2 V, ≤ 20 mA |
|
Current |
DC 4-20 mA, Load resistance: ≤ 500 Ω |
|
Option output |
250 VACᜠ 2 A 1c |
|
Alarm output setting range |
F.S. 0 to 10% (volume switch) |
|
Option output setting range |
0 to 50 ℃ (volume switch) |
|
Reset range |
F.S. -3 to 3% (volume switch) |
|
Display type |
7 segment (red), LED type |
|
Control type |
ON/OFF, Proportional control |
|
Hysteresis |
F.S. 0.2 to 3% (T3S: F.S. 0.5%) (volume switch) |
|
Proportional band |
F.S. 1 to 10% (T3S: F.S. 3%) (volume switch) |
|
Proportional cycle |
20 sec |
|
Relay life cycle |
Mechanical |
≥ 5,000,000 operations |
Electrical |
OUT1: ≥ 100,000 operations, OUT2: ≥ 200,000 operations |
|
Dielectric strength |
Between input terminal and power terminal: 2,000 VACᜠ 50/60 Hz for 1 min |
|
Vibration |
0.75 mm amplitude at frequency of 10 to 55 Hz (for 1 min) in each X, Y, Z direction for 2 hours |
|
Insulation resistance |
≥ 100 MΩ (500 VDCᜡ megger) |
|
Noise immunity |
±2 kV square shaped noise by noise simulator (pulse width 1 ㎲) R-phase, S-phase |
|
Memory retention |
≈ 10 years (non-volatile semiconductor memory type) |
|
Ambient temperature |
-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
|
Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation) |
|
Approval |
|
|
Unit weight (packaged) |
• T3S: ≈ 95 g (≈ 135 g) • T3H, T3HA, T3HS: ≈ 176 g (≈ 239 g) • T4M, T4MA: ≈ 180 g (≈ 246 g) • T4L, T4LA, T4LP: ≈ 222 g (≈ 310 g) |
|
01) In case of the T3S Series and the decimal point display models Out of room temperature range: (PV ±0.5% or ±3 ℃ higher one) ±1 digit |
Series |
Температурен контролер T3/T4 Series, 1-Channel |
Power supply |
100 - 240 VACᜠ 50/60 Hz ±10% (T3NI: 12 -24 VDCᜡ ±10%) |
Power consumption |
≤ 5 VA (T3NI: ≤ 1 W) |
Input specification |
Refer to Autonics website |
Display accuracy 01) |
• At room temperature (23 ℃ ±5 ℃): (PV ±0.5% or ±1℃ higher one) ±1 digit • Out of room temperature range: (PV ±0.5% or ±2 ℃ higher one) ±1 digit |
Display type |
7 Segment (red), LED type |
Dielectric strength |
Between input terminal and power terminal: 2,000 VACᜠ 50/60 Hz for 1 min |
Vibration |
0.75 mm amplitude at frequency of 10 to 55 Hz (for 1 min) in each X, Y, Z direction for 2 hours |
Insulation resistance |
≥ 100 MΩ (500 VDCᜡ megger) |
Noise immunity |
±2 kV square shaped noise (pulse width 1 ㎲) by noise simulator R-phase, S-phase |
Ambient temperature |
-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation) |
Accessory |
Bracket |
Approval |
|
Unit weight (packaged) |
• T3NI: ≈ 25 g (≈ 48 g) • T4YI: ≈ 123 g (≈ 181 g) • T4WI: ≈ 140 g (≈ 231 g) • T3SI: ≈ 80 g (≈ 120 g) • T3HI: ≈ 137 g (≈ 203 g) • T4MI: ≈ 137 g (≈ 202 g) • T4LI: ≈ 185 g (≈ 274 g) |
01) In case of T3NI, T3SI Series and the decimal point display models |
Series |
Температурен контролер KN-1000B Series |
||
AC voltage |
DC voltage |
||
Power supply |
100 - 240 VACᜠ 50/60 Hz |
24 VDCᜡ |
|
Allowable voltage range |
90 to 110% of rated voltage |
||
Power consumption |
≤ 6 VA |
≤ 4 W |
|
Sampling period |
• Thermocouple, RTD: 250 ms • Analog: 100 ms |
||
Input specification |
Refer to Autonics website |
||
Digital input |
Contact |
• ON: ≤ 2 kΩ • OFF: ≥ 90 kΩ |
|
Non contact |
• Residual voltage: ≤ 1.0 V • leakage current: ≤ 0.03 mA |
||
Outflow current |
≈ 0.2 mA |
||
Option output |
Alarm |
• 2 point relay: 250 VACᜠ 3 A 1c • 4 point relay: 250 VACᜠ 1 A 1a |
|
PV transmission |
ISOLATED DC 4-20 mA (Load resistance: ≤ 600 Ω) |
||
RS485 comm. |
Modbus RTU |
||
Display type |
7 Segment (red), Graph bar (green) |
||
Alarm output Hysteresis |
1 to 999 digit |
||
Relay life cycle |
Mechanical |
• 2 point: ≥ 10,000,000 operations • 4 point: ≥ 20,000,000 operations |
|
Electrical |
• 2 point: ≥ 100,000 operations (load resistance: 250 VACᜠ 3 A) • 4 point: ≥ 500,000 operations (load resistance: 250 VACᜠ 1 A) |
||
Dielectric strength |
Between input terminal and power terminal: 2,000 VACᜠ 50/60 Hz for 1 min |
||
Vibration |
0.75 mm amplitude at frequency of 5 to 55 Hz (for 1 min) in each X, Y, Z direction for 2 hours |
||
Insulation resistance |
≥ 100 MΩ (500 VDCᜡ megger) |
||
Noise immunity |
±2 kV square shaped noise (pulse width 1 ㎲) by noise simulator |
||
Memory retention |
≈ 10 years (non-volatile semiconductor memory type) |
||
Ambient temperature |
-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
||
Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation) |
||
Approval |
|
||
Unit weight (packaged) |
≈ 182 g (≈ 304 g) |
||
Comm. protocol |
Modbus 1.1 RTU |
Series |
Температурен контролер KN-2000W Series |
||
AC voltage |
DC voltage |
||
Power supply |
100 - 240 VACᜠ 50/60 Hz |
24 VDCᜡ |
|
Power consumption |
≤ 8 VA |
≤ 3 W |
|
Sampling period |
• Thermocouple, RTD: 250 ms • Analog: 100 ms |
||
Input specification |
Refer to Autonics website |
||
Digital input |
Contact |
• ON: ≤ 2 kΩ • OFF: ≥ 90 kΩ |
|
Non contact |
• Residual voltage: ≤ 1.0 V • Leakage current: ≤ 0.03 mA |
||
Outflow current |
≈ 0.2 mA |
||
Option output |
Alarm |
• 2 point relay: 250 VACᜠ 3 A 1c • 4 point relay: 250 VACᜠ 1 A 1a |
|
PV Transmission |
ISOLATED DC 4-20 mA (Load resistance: ≤ 600 Ω) |
||
RS485 comm. |
Modbus RTU |
||
Display type |
7 Segment (Red, Green, Yellow), LED type |
||
Alarm output Hysteresis |
1 to 999 digit |
||
Relay life cycle |
Mechanical |
• 2 point: ≥ 10,000,000 operations • 4 point: ≥ 20,000,000 operations |
|
Electrical |
• 2 point: ≥ 100,000 operations(Load resistance: 250 VACᜠ 3 A) • 4 point: ≥ 500,000 operations (Load resistance: 250 VACᜠ 1 A) |
||
Dielectric strength |
Between input terminal and power terminal: 2,000 VACᜠ 50/60 Hz for 1 min |
||
Vibration |
0.75 mm amplitude at frequency of 5 to 55 Hz (for 1 min) in each X, Y, Z direction for 2 hours |
||
Insulation resistance |
≥ 100 MΩ (500 VDCᜡ megger) |
||
Noise immunity |
±2 kV square shaped noise (pulse width 1 ㎲) by noise simulator |
||
Memory retention |
≈ 10 years (non-volatile semiconductor memory type) |
||
Ambient temperature |
-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
||
Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation) |
||
Approval |
|
||
Unit weight (packaged) |
≈ 200 g (≈ 332 g) |
||
Comm. protocol |
Modbus 1.1 RTU |
[Control module] | ||
Model |
Температурен контролер TMH2 |
Температурен контролер TMH4 |
No. of channels |
2 channels |
4 channels |
Sampling period |
50 ms (2 channels or 4 channels synchronous sampling) |
|
Input specification |
Thermocouple, RTD, Analog (refer to 'Input Specification') |
|
CT input |
• 0.0 - 50.0A (primary current measurement range) • CT ratio: 1/1,000, • Measurement accuracy: ±5% F.S. ±1 digit |
|
Digital input
Control type |
• Connect input |
- |
Heating, cooling, heating & cooling: ON/OFF, P, PI, PD, PID control |
||
Control output |
• R elay: 250 VACᜠ 3 A 1a mechanical life cycle: ≥ 10,000,000 operations, electrical life cycle: ≥ 100,000 operations • SSR: 12 VDCᜡ ±3 V, ≤ 20 mA • Current 01): DC 4 - 20 mA or DC 0 - 20 mA (Load: ≤ 500 Ω) |
|
Alarm output |
250 VACᜠ 3 A 1a Mechanical life cycle: ≥ 10,000,000 operations Electrical life cycle: ≥ 100,000 operations |
- |
Communication |
Modbus RTU |
|
Hysteresis |
• Thermocouple / RTD: 1 to 100 (0.1 to 100) ℃/℉ • Analog: 1 to 100 digit |
|
Proportional band (P) |
• Thermocouple / RTD: 1 to 999 (0.1 to 999.9) ℃/℉ • Analog: 0.1 to 999.9 digit |
|
Integral time (I) |
0 to 9,999 sec |
|
Derivative time (D) |
0 to 9,999 sec |
|
Control period (T) |
• Relay output, SSR drive output: 0.1 to 120.0 sec • Selectable current or SSR drive output: 1.0 to 120.0 sec |
|
Manual reset |
0 to 100 (0.0 to 100.0) % |
|
Insulation type |
Double insulation or reinforced insulation (mark: ▱, dielectric strength between the measuring input part and the power part: 1 kV) |
|
Unit weight (packaged) |
• Basic module: ≈ 178 g (≈ 251 g) • Expansion module: ≈ 173 g (≈ 246 g) |
[Option module] |
||
Model |
Температурен контролер TMHA-42AE |
|
No. of channels |
4 channels |
|
Sampling period |
50 ms (4 channels synchronous sampling) |
|
Input specification |
Thermocouple, RTD, analog (refer to 'Input Specification') |
|
Transmission output |
DC 4 - 20 mA or DC 0 - 20 mA (Load: ≤ 500 Ω) |
|
Communication |
Modbus RTU |
|
Insulation type |
Double insulation or reinforced insulation (mark: ▱, dielectric strength between the measuring input part and the power part: 1 kV) |
|
Unit weight (packaged) |
≈ 161 g (≈ 234 g) |
|
Model |
Температурен контролер TMHE-82RE |
Температурен контролер TMHCT-82NE |
No. of channels |
8 points |
8 points |
Input specification |
- Digital input • Connect input ON: ≤ 1 kΩ, OFF: ≥ 100 kΩ • Solid state input Residual voltage: ≤ 0.9 V, Leakage current: ≤ 0.5 mA • Outflow current: ≈ 0.3 mA per input |
- CT input • 0.0-50.0 A (primary current measurement range) • CT ratio: 1/1,000 • Measurement accuracy: ±5% F.S. ±1 digit |
Alarm output |
250 VACᜠ 3 A 1a, • Mechanical life cycle: ≤ 10,000,000 operations • Electrical life cycle: ≤ 100,000 operations |
- |
Communication |
Modbus RTU |
|
Insulation type |
Double insulation or reinforced insulation (mark: ▱, dielectric strength between the measuring input part and the power part: 1 kV) |
- |
Unit weight (packaged) |
≈ 166 g (≈ 239 g) |
≈ 148 g (≈ 221 g) |
[Communication module] | |||
Model |
Температурен контролер TMHC-22LE |
Температурен контролер TMHC-22EE |
|
Communi -cation |
COM1 |
• Connection type: RS422 / RS485 • Protocol: M odbus RTU, PLC Ladderless communication |
• Connection type: E thernet (10/100BaseT) • Protocol: M odbus TCP |
COM2 |
|||
PC loader |
TTL (Protocol: Modbus RTU) |
||
Insulation type |
Double insulation or reinforced insulation (mark: 回, dielectric strength between the measuring input part and the power part: 1 kV) |
||
Unit weight (packaged) |
≈ 147 g (≈ 219 g) |
≈ 129 g (≈ 200 g) |
[Common] |
|
Power supply (01) |
24 VDCᜡ |
Allowable voltage range |
90 to 110% of rated voltage |
Power Consumption |
≤ 5 W (for max. load) |
Display type |
None- parameter setting and monitoring is available at external devices |
Memory retention |
≈ 10 years (non-volatile semiconductor memory type) |
Insulation resistance |
100 MΩ (500 VDCᜡ megger) |
Dielectric strength |
Between the charging part and the case: 1,000 VACᜠ 50/60 Hz for 1 min |
Vibration |
0.75mm amplitude at frequency of 5 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
Noise immunity |
Square shaped noise by noise simulator (pulse width 1 μs) ±0.5 kV |
Ambient temperature |
-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
Ambient humidity |
35 to 85%RH, Storage: 35 to 85%RH (no freezing or condensation) |
Accessory |
Expansion connector: 1, module lock connector: 2 |
Protection structure |
IP20 (IEC standard) |
Approval |
|
01) The control extension/option/communication module uses the power voltage from the control basic module. |
Series |
Температурен контролер TM2 |
Температурен контролер TM4 |
|
No. of channels |
2 channels |
4 channels |
|
Power supply |
24 VDCᜡ ±10% |
||
Allowable voltage range |
90 to 110% of rated voltage |
||
Power consumption |
≤ 5 W (for Max. load) |
||
Sampling period |
50 ms (2 channels synchronous sampling) |
100 ms (4 channels synchronous sampling) |
|
Input specification |
Refer to Autonics website |
||
Option input |
CT input |
• 0.0-50.0 A (primary current measurement range) • CT ratio: 1/1,000 • Measurement accuracy: ±5% F.S. ±1 digit |
- |
Digital input |
• Contact ON: ≤ 1 kΩ, OFF: ≥ 100 kΩ • Non contact residual voltage: ≤ 1.5 VDCᜡ leakage current: ≤ 0.1 mA • Outflow current: ≈ 0.5 mA per input |
- |
|
Control output |
Relay |
250 VACᜠ 3 A 1a, 30 VDCᜡ 3 A 1a |
|
SSR |
12 VDCᜡ ±3 V, ≤ 30 mA |
22 VDCᜡ ±3 V, ≤ 30 mA |
|
Current |
DC 4 - 20 mA or DC 0 - 20 mA (Load resistance: ≤ 500 Ω) |
||
Alarm output |
250 VACᜠ 3 A 1a |
- |
|
RS485 Comm. |
Modbus RTU |
||
Display type |
None- parameter setting and monitoring is available at external devices |
||
Control type |
Heating, Cooling |
ON/OFF, P, PI, PD, PID Control |
|
Heating & Cooling |
|||
Hysteresis |
1 to 100 (0.1 to 100) ℃/℉ |
||
Proportional band (P) |
0.1 to 999.9 ℃/℉ |
||
Integral time (I) |
0 to 9,999 sec |
||
Derivative time (D) |
0 to 9,999 sec |
||
Control cycle (T) |
0.1 to 120.0 sec |
||
Manual reset |
0.0 to 100.0 % |
||
Relay life cycle |
Mechanical |
≥ 10,000,000 operations |
|
Electrical |
≥ 100,000 operations (250 VACᜠ 3 A load resistance) |
||
Dielectric strength |
Between input terminal and power terminal: 2,000 VACᜠ 50/60 Hz for 1 min |
||
Vibration |
0.75 mm amplitude at frequency of 5 to 55 Hz (for 1 min) in each X, Y, Z direction for 2 hours |
||
Insulation resistance |
100 MΩ (500 VDCᜡ megger) |
||
Noise immunity |
±0.5 kV square shaped noise (pulse width 1 ㎲) by noise simulator |
||
Ambient temperature |
-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
||
Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation) |
||
Channel insulation |
Dielectric strength 1,000 VACᜠ |
||
Insulation type |
Double insulation or reinforced insulation (mark: ▱, dielectric strength between the measuring input part and the power part: 1 kV) |
||
Approval |
|
||
Unit weight (packaged) |
• Basic module: ≈ 152 g (≈ 217 g) • Expansion module: ≈ 143 g (≈ 208 g) |
• Basic module: ≈ 174 g (≈ 239 g) • Expansion module: ≈ 166 g (≈ 231 g) |
|
Comm. protocol |
Modbus RTU |
Series |
Температурен контролер TR1D Series |
|
Power supply |
100 - 240 VACᜠ 50/60 Hz |
|
Allowable voltage range |
90 to 110% of rated voltage |
|
Power consumption |
≤ 8 VA |
|
Sampling period |
50, 100, 250 ms |
|
Input specification |
Refer to Autonics website |
|
Option input |
CT input |
• 0.0-50.0 A (primary current measurement range) • CT ratio: 1/1,000, • Measurement accuracy: ±5% F.S. ±1digit |
Control output |
Relay |
250 VACᜠ 3 A 1a |
SSR |
12 VDCᜡ ±3 V, ≤ 20 mA |
|
Current |
DC 4-20 mA or DC 0-20 mA (parameter), Load: ≤ 500 Ω |
|
Option output |
Alarm |
AL1, AL2: 250 VACᜠ 3 A 1a |
Transmission |
DC4-20 mA (Load resistance: ≤ 500 Ω, Output accuracy: ±0.3% F.S.) |
|
RS485 comm. |
Modbus RTU / ASCII |
Display type |
7 segment (red), 4-digit |
|
Control type |
ON/OFF, P, PI, PD, PID Control |
|
Hysteresis |
Control output: 1 to 100 ℃/℉ (0.1 to 100.0 ℃/℉) Alarm output: 1 to 100 ℃/℉ (0.1 to 50.0 ℃/℉) |
|
Proportional band (P) |
0.1 to 999.9 ℃ |
|
Integral time (I) |
0 to 9,999 sec |
|
Derivative time (D) |
0 to 9,999 sec |
|
Control cycle (T) |
Relay output: 0.5 to 120.0 sec, SSR drive output: 0.5 to 120.0 sec |
|
Manual reset |
0.0 to 100.0% |
|
Dielectric strength |
Between the power part and the case: 3,000 VACᜠ 50/60 Hz for 1 min |
|
Vibration |
0.75 mm amplitude at frequency of 5 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
|
Relay life cycle |
Mechanical |
OUT1/2, AL1/2: ≥ 5,000,000 operations |
Electrical |
OUT1/2, AL1/2: ≥ 100,000 operations (resistance load: 250 VACᜠ 5 A) |
|
Insulation resistance |
≥ 100 MΩ (500 VDCᜡ megger) |
|
Insulation type |
Double insulation or reinforced insulation (dielectric strength between the power part and the case: 3 kV) |
|
Noise immunity |
Square shaped noise (pulse width: 1 ㎲) by noise simulator ±2 kV R-phase, S-phase |
|
Memory retention |
≈ 10 years (non-volatile semiconductor memory type) |
|
Ambient temperature |
-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
|
Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation) |
|
Approval |
|
|
Unit weight (packaged) |
≈ 123.5 g (≈ 194.5 g) |
|
Comm. protocol |
Modbus RTU / ASCII |
