Високоскоростни шот клапани

Високоскоростни шот клапани

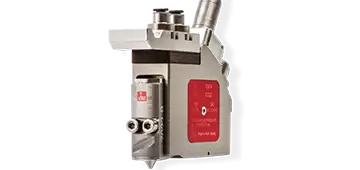

DOPAG high-speed valve for contactless material application

Contactless application of lubricants from up to 120mm distance

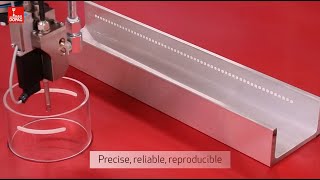

The high-speed valve is used in contactless (from a distance) applications of grease and oil where stringing must be avoided. The compact design of the valve enables an effortless and effective greasing of narrow and hard-to-reach spaces. The dot application takes place in the longitudinal direction of the nozzle with a perfect material cut off after each shot.

With short cycle times, this valve is ideal for integration into highly efficient processes. Thanks to an innovative nozzle with a self-cleaning effect and an integrated filter, the high-speed valve delivers a perfectly clean application every time. An integrated heating element keeps the material properties at their optimum, ensuring high process stability and reproducibility.



  • Features

•  Shot application
•  Nozzle size Ø 0.21 – 0.81 mm
•  Input pressure max. 70 bar
•  24V DC solenoid valve for maximum shot frequency of 100 Hz
•  Integrated 230 V AC / 155 W heating with a temperature sensor PT100



  • Options

•  5m cable for heating
•  Light barrier for shot detection
