Weintek IR Remote I/O

Weintek IR Remote I/O

Серия iR отдалечени входове/изходи

Weintek iR Series Remote – дистанционна входно/изходна система.

оцени серията
оценка 0 от 0 гласували

Състои се от един или повече мрежови интерфейсни модула (couplers) и I/O модули. Поддържа до 1024 I/O точки на възел (съединител). Множество възли могат да бъдат свързани към главен (PLC, HMI или PC). Всяка база включва модул за комуникационен интерфейс, последван от няколко модула за цифрови/аналогови входове/изходи.



  • Видове модули

•  Комуникационни модули: Modbus TCP/IP, CANopen, EtherNet/IP and EtherCAT

•  iR-PU01-P Motion Control модул

•  iR Цифрови I/O модули

•  iR Аналогови I/O модули

•  iR-AI04-TR температурен модул

•  iR Series I/O couplers

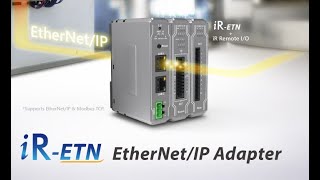

•  iR-ETN coupler: Modbus TCP/IP Protocol – 10/100 Mbps трансфер. Може да комуникира с 8 PLC: Weintek cMT Serie HMI (cMT-3071 до cMT-3151) със или без Codesys soft-PLC или друг PLC, поддържащ Modbus TCP/IP протокол.

•  iR-COP Coupler: CANopen, може да комуникира с 8 PLC: Weintek cMT Serie HMI (cMT-3071 до cMT-3151) със или без soft-PLC или други CANopen Master устройства.

•  iR-ECAT Coupler: EtherCat slave може да комуникира с 8 PLC: Weintek cMT Serie HMI (cMT-3071 до cMT-3151) със или без Codesys soft-PLC или всякакви други EtherCat slave устройства.

•  iR Series Discrete I/O Modules

•  Дискретни I/O модули на Weintek iR Series. Позволяват разпределено наблюдение и контрол на ON/OFF сигнали и устройства, които превключват VDC мощност, като крайни превключватели и други сензори, както и малки товари като пневматични електромагнитни клапани и индикаторни светлини. Дистанционните входно-изходни модули се предлагат с 8 или 16 точки.

•  iR Series Analog I/O Modules

•  Аналоговите I/O модули са необходими за прецизен контрол на даден процес, включително данни за ниво, дебит и налягане. Аналоговите входно/изходни сигнали са в диапазони като 0 – 20 mA, 4 – 20 mA и 0 – 10 VDC. Те са с 4 канала – модели на ток, напрежение и 16-битова разделителна способност.

•  iR Series Speciality Modules – специалните модули разширяват възможностите на iR серията

•  iR-AI04-TR температурен модул – 4 входа RTD/THERMOCOUPLE

•  iR-PU01-P Motion Control – едноосен модул за управление движението на стъпкови/сервомотори, което го прави широко приложим за управление на позиционирането.

Максималният брой поддържани модули 16, зависи от комбинирането и количествата на всеки тип модул, в зависимост от тяхното електрическо потребление: общото потребление не може да надвишава 2 A/10 W.

Model HMI дистанционна система iR-ETN HMI дистанционна система iR-COP HMI дистанционна система iR-ECAT
Expansion I/O module Number of Bus Terminals Depends on Power Consumption Depends on Power Consumption Depends on Power Consumption
  Digital Input Point Max. 256 Max. 256 Max. 256
  Digital Output Point Max. 128 Max. 128 Max. 128
  Analog Input Channel Max. 64 Max. 64 Max. 64
  Analog Output Channel Max. 64 Max. 64 Max. 64
Data Transfer Rate   10/100 Mbps 50 k ~ 1 Mbps 100 Mbps
Max. Number of TCP/IP Connections   8 Connections - -
Protocol   Modbus TCP/IP Server, EtherNet/IP adapter CANopen Slave EtherCAT Slave
Isolation   Network to Logic Isolation: Yes CAN bus Isolation: Yes Network to Logic Isolation: Yes
No. of Ports   1 2 2
Power Power Supply 24 VDC (-15%/+20%) 24 VDC (-15%/+20%) 24 VDC (-15%/+20%)
  Power Dissipation Nominal 100 mA@24 VDC Nominal 100 mA@24 VDC Nominal 100 mA@24 VDC
  Current for Internal Bus Max 2 A@5 VDC Max 2 A@5 VDC Max 2 A@5 VDC
  Current Consumption 220 mA@5 VDC 170 mA@5 VDC 270 mA@5 VDC
  Power Isolation Yes Yes Yes
  Back-up Fuse ≤ 1.6A Self-recovery ≤ 1.6A Self-recovery ≤ 1.6A Self-recovery
Specification PCB Coating Yes Yes Yes
  Enclosure Plastic Plastic Plastic
  Dimensions WxHxD 27 x 109 x 81 mm 27 x 109 x 81 mm 27 x 109 x 81 mm
  Weight Approx. 0.15 kg Approx. 0.15 kg Approx. 0.15 kg
  Mount 35 mm DIN rail mounting 35 mm DIN rail mounting 35 mm DIN rail mounting
Environment Protection Structure IP20 IP20 IP20
  Storage Temperature - 20° ~ 70° C (- 4° ~ 158° F) - 20° ~ 70° C (- 4° ~ 158° F) - 20° ~ 70° C (- 4° ~ 158° F)
  Operating Temperature 0° ~ 55° C (32° ~ 131° F) 0° ~ 55° C (32° ~ 131° F) 0° ~ 55° C (32° ~ 131° F)
  Relative Humidity 10% ~ 90% (non-condensing) 10% ~ 90% (non-condensing) 10% ~ 90% (non-condensing)
Certification EMC Immunity Conforms to
EN 55032: 2012+AC: 2013, Class A
EN 61000-6-4: 2007+A1:2011
EN 55024: 2010+A1: 2015
EN 61000-6-2:2005
Conforms to
EN 55032: 2012+AC: 2013, Class A
EN 61000-6-4: 2007+A1:2011
EN 55024: 2010+A1: 2015
EN 61000-6-2:2005
Conforms to
EN 55032: 2012+AC: 2013, Class A
EN 61000-6-4: 2007+A1:2011
EN 55024: 2010+A1: 2015
EN 61000-6-2:2005
  UL cULus Listed cULus Listed cULus Listed





Model HMI дистанционна система iR-ETN40R
Expansion I/O module Number of Bus Terminals Depends on Power Consumption
  Digital Input Point Max. 224
  Digital Output Point Max. 112
  Analog Input Channel Max. 64
  Analog Output Channel Max. 64
Data Transfer Rate   10/100 Mbps
Max. Number of TCP/IP Connections   8 Connections
Protocol   Modbus TCP Server, EtherNet/IP adapter
Isolation   Network to Logic Isolation: Yes
No. of Ports   1
Digital Output Total Number of Outputs 16
  Output Logic Relay
  Output Voltage 250 VAC/30 VDC
  Output Current 2 A per channel (Max 8 A)
Digital Input
Total Number of Inputs   24
General Input Input Logic Sink or Source
  Number of Inputs 20
  Logic 1 Input Voltage 15 ~ 28 VDC
  Logic 0 Input Voltage 0 ~ 5 VDC
  Input Impedance 5.6 KΩ
High-speed Input Number of Inputs 4
  Input Logic SINK INPUT (PNP)
  Logic 1 Input Voltage 15 ~ 28 VDC
  Logic 0 Input Voltage 0 ~ 5 VDC
  Max. Input Frequency 20 KHz
  Input Impedance 3 KΩ
Isolation   Input: Yes, optical isolation, Output: Yes, electromagnetic
isolation
Power Power Supply 24 VDC (-15%/+20%)
  Power Dissipation Nominal 255 mA @ 24 VDC
  Current for Internal Bus Max 2 A @ 5 VDC
  Current Consumption 520 mA @ 5 VDC
  Power Isolation Yes
  Back‐up Fuse ≤ 1.6 A Self-recovery
Specification PCB Coating Yes
  Enclosure Plastic
  Dimensions WxHxD 64 x 109 x 81 mm
  Weight Approx. 0.27 kg
  Mount 35 mm DIN rail mounting
Environment Protection Structure IP20
  Storage Temperature - 20° ~ 70° C (- 4° ~ 158° F)
  Operating Temperature - 10° ~ 60° C (14° ~ 140° F)
  Relative Humidity 10% ~ 90% (non-condensing)
Certificate EMC Immunity Conforms to
EN 55032: 2012+AC: 2013, Class A; EN 61000-6-4:
2007+A1:2011; EN 55024: 2010+A1: 2015; EN 61000-6-
2:2005





Model HMI дистанционна система iR-DI16-K HMI дистанционна система iR-DM16-P HMI дистанционна система iR-DM16-N HMI дистанционна система iR-DQ16-P HMI дистанционна система iR-DQ16-N HMI дистанционна система iR-DQ08-R
Input Logic Sink or Source Sink or Source Sink or Source N/A N/A N/A
Number of Inputs 16  8  8 0 0 0
Output Logic N/A Source Sink Source Sink Relay
Number of Outputs 0 8 8 16 16 8
Current Consumption 83 mA@5 VDC 130 mA@5 VDC 130 mA@5 VDC 196 mA@5 VDC 205 mA@5 VDC 220mA@5VDC
HIGH Level Input Voltage 15 ~ 28 VDC 15 ~ 28 VDC 15 ~ 28 VDC N/A N/A N/A
LOW Level Input Voltage 0 ~ 5 VDC 0 ~ 5 VDC 0 ~ 5 VDC N/A N/A N/A
Output Voltage N/A 11 ~ 28 VDC 11 ~ 28 VDC 11 ~ 28 VDC 11 ~ 28 VDC 250VAC/ 30VDC
Output Current N/A 0.5 A per channel (Max 4 A) 0.5 A per channel (Max 4 A) 0.5 A per channel (Max 4 A) 0.5 A per channel (Max 4 A) 2A per channel (Max 8A)
Isolation Input: Optical Isolation
Output: N/A
Input: Optical Isolation
Output: Optical Isolation
Input: Optical Isolation
Output: Optical Isolation
Input: N/A
Output: Optical Isolation
Input: N/A
Output: Optical Isolation
Input: N/A
Output: Electromagnetic
Isolation
Specification Enclosure Plastic
Dimensions WxHxD 27 x 109 x 81 mm
Weight Approx. 0.12 kg Approx. 0.13 kg
Mount 35 mm DIN rail mounting
Environment Protection Structure IP20
Storage Temperature - 20° ~ 70° C (- 4° ~ 158° F)
Operating Temperature 0° ~ 55° C (32° ~ 131° F)
Relative Humidity 10% ~ 90% (non-condensing)
Connection Cross-section AWG 28 - 16 AWG 24-16
Certification EMC Immunity Conforms to
EN 55032: 2012+AC: 2013, Class A; EN 61000-6-4: 2007+A1:2011; EN 55024: 2010+A1: 2015; EN 61000-6-2:2005
UL cULus Listed





Model HMI дистанционна система iR-AI04-VI HMI дистанционна система iR-AM06-VI  HMI дистанционна система iR-AQ04-VI
Number of Analog Inputs   4 (± 10 V / ± 20 mA) 4 (± 10 V / ± 20 mA) 0
Number of Analog outputs   0 2 (± 10 V / ± 20 mA) 4 (± 10 V / ± 20 mA)
Current Consumption   70 mA@5 VDC 70 mA@5 VDC 65 mA@5 VDC
Analog Power Supply   24 VDC(20.4 VDC ~ 28.8 VDC) (-15% ~ + 20%) 24 VDC(20.4 VDC ~ 28.8 VDC) (-15% ~ + 20%) 24 VDC(20.4 VDC ~ 28.8 VDC) (-15% ~ +20%)
Specification PCB Coating Yes
  Enclosure Plastic
  Dimensions WxHxD 27 x 109 x 81 mm
  Weight Approx. 0.12 kg
  Mount 35 mm DIN rail mounting
Environment Protection Structure IP20
  Storage Temperature - 20° ~ 70° C (- 4° ~ 158° F)
  Operating Temperature 0° ~ 55° C (32° ~ 131° F)
  Relative Humidity 10% ~ 90% (non-condensing)
Connection Cross-section AWG 28 - 16 AWG 24 - 16
Certification EMC Immunity Conforms to
EN 55032: 2012+AC: 2013, Class A; EN 61000-6-4: 2007+A1:2011; EN 55024: 2010+A1: 2015; EN 61000-6-2:2005
  UL cULus Listed
