Mitsubishi Electric E80 Series

Mitsubishi Electric E80 Series

Mitsubishi Electric E80 Series

The Mitsubishi Electric's CNC E80 Series boasts drastic improvements in performance and a higher accuracy than ever before. The simple and easy-to-use E80 Series helps in achieving a greater cost performance, and fits best with simple machine configurations.

  • Drastic improvements in performance CNC-dedicated CPU

With Mitsubishi Electric's high-speed CNC-dedicated CPU, the E80 Series reduces cycle times due to a higher program and PLC processing capability. Higher optical communication speeds between the CNC and drive acheive higher accuracy in machining.

E80 - Mitsubishi Electric CNC



  • Models for various machine configurations TypeA/TypeB

TypeA and TypeB models are available for both machining centers and lathes. Select the model with the specifications that suit the machine cofiguration best. [Machining center system] TypeB supports machines with up to 3 axes. TypeA supports the setup of a rotary table. [Lathe system] TypeB controls 3 feed axes and 2 spindles as standard. Select TypeA for configurations that have a maximum of 3 spindles such as compound lathes.

E80 - Mitsubishi Electric CNC



  • Leading design Display Units and Keyboards

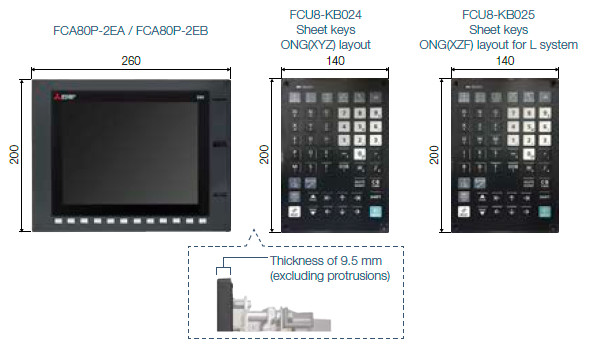

The E80 Series adopts the M800/M80 Series design. The display unit and keyboard are only 9.5 mm thick, and their flat profile opens up new possibilities for machine design. There are 2 types of keyboard layouts, one for lathes and the other for milling.

E80 Series Product Feature Computerized Numerical Controllers(CNCs) |  MITSUBISHI ELECTRIC FA



ENHANCED LATHE SYSTEM

The E80 Series comes with enhanced high-accuracy control functions for lathes with milling functions as standard. Functions such as the interactive cycle insertion function make programming easier, improving operability.



  • Persuing usability - The Simple Monitor Screen

The simple monitor screen puts all the essential information for mass production on one screen, making it simple to end information immediately. Information such as the selected tool and the remaining lifetime can be checked by viewing the tool icon.

E80 - Mitsubishi Electric CNC



  • Reduce setup time - Workpiece Coordinate System Shift

The same machining program can be used when the workpiece coordinate system does not match the actual workpiece coordinate system, or when the actual workpiece length is different. This function helps to create machining programs easier.

E80 - Mitsubishi Electric CNC



  • Improved machining accuracy - High-accuracy Control

E80 Series high-accuracy control minimizes deviation of the actual tool path from the command path, improving the accuracy of the machining of corners and arcs.

E80 - Mitsubishi Electric CNC



  • Flexible commands - Diameter/Radius Designation Switch

Flexible commands allow the user to switch between diameter/radius designation for each axis with the G-code at any time. Flexible commands are particularly useful for programs where turning and milling coexist.

E80 - Mitsubishi Electric CNC



  • Applicable to a wide array of machine specifications Synchronous Tapping with Analog I/F Spindle

Synchronous tapping can be performed with an analog-connected spindle such as an inverter without using a dedicated tool holder. The applicability to a wide array of machine specifications allows for more efficient machining.

E80 - Mitsubishi Electric CNC



  • Easier program creation - Interactive Cycle Insertion

Create a machining program automatically simply by inserting a machining shape in a selected machining cycle. Interactive cycle insertion enables the user to create programs intuitively while referring to drawings on the screen, reducing the time required for program creation compared with G-code input.

E80 - Mitsubishi Electric CNC



  • Easier program creation - Finish Shape View Programming

Check the machining program while viewing the actual operation of the machine. Also, forward run/reverse run operation can be checked meticulously at a desired feedrate (manual handle feed) , making prototype checks more accurate and easier than before.

E80 - Mitsubishi Electric CNC



  • Easier program creation - Program Check Operation

Check the machining program while viewing the actual operation of the machine. Also, forward run/reverse run operation can be checked meticulously at a desired feedrate (manual handle feed) , making prototype checks more accurate and easier than before.

E80 - Mitsubishi Electric CNC



  • Program finalization - 3D Solid Program Check

3D solid program check allows the user to check a finalized machining program against the 3D graphic of the final shape for the program. Being able to perform a detailed check of the final shape before production on the actual machine is a major advantage.

E80 - Mitsubishi Electric CNC



ENHANCED MACHINING CENTER SYSTEM

The eSSS control function responds to the growing demand for high-quality machining even in basic machine configurations. The E80 Series reduces non-cutting time, improving productivity at production sites.



  • Pursuing usability - The Simple Monitor Screen

The simple monitor screen puts all the essential information for mass production on one screen, and is easy to view from distance. The screen configurations (simple/normal), and the types of counters being displayed can be changed using the screen menu, making the customization of displays easier than before.

E80 - Mitsubishi Electric CNC



  • Reduce setup time - Workpiece Position Measurement

The coordinate points can be measured on the workpiece measurement screen, and values automatically calculated from the measured coordinates are set. Manual measurements using jigs or dial gauges are no longer necessary.

E80 - Mitsubishi Electric CNC



  • Applicable to a wide array of machine specifications Synchronous Tapping with Analog I/F Spindle

Synchronous tapping can be performed with an analog-connected spindle such as an inverter without using a dedicated tool holder. The applicability to a wide array of machine specifications allows for more efficient machining.

E80 - Mitsubishi Electric CNC



  • Applicable to a wide array of machine specifications - Multiple-axis Synchronization Control

This function enables the synchronous control of multiple Z axes. Synchronizing multiple axes enables the controlling of machines that perform the same operation over multiple axes such as multi-head machines. The tool length for each Z axis can be compensated individually, and it improves machining accuracy.

E80 Series Product Feature Computerized Numerical Controllers(CNCs) |  MITSUBISHI ELECTRIC FA



  • Contribute to high-accuracy machining - OMR-FF Control

OMR-FF control adjusts the optimal position loop gain for each axis, leading to smoother and more accurate machining.

E80 - Mitsubishi Electric CNC



  • Contribute to high-quality machining - eSSS Control [*1]

When the tool passes through the corner portion at high acceleration and high speed, eSSS control determines the machining shape comprehensively, suppresses excessive feedrate change and vibration, and smoothens the operation. This ensures consistent high-quality machining which is not affected by the quality of machining programs. *1 The control process of this function is equivalent to "SSS Control" (Super Smooth Surface Control) of the M800/M80 Series. Some of the relevant parameters are fixed for this function, however, "SSS Control" can be used by making some simple settings.

E80 - Mitsubishi Electric CNC



  • Easy operation, high quality - Tolerance Control

This function obtains the optimum clamp speed for corners or curves based on the designated tolerance to perform operations. It also ensures smooth passing in corner sections within the tolerance range, which suppresses machine vibrations. The cycle time is reduced because the clamp speed can be increased to a higher speed than usual. Simply set the amount of tolerance, and the machine operates at the optimal speed and tool path, making it easy to achieve a high-quality machined surface.

E80 - Mitsubishi Electric CNC



FACTORY-WIDE OPTIMIZATION

A wide range of field networks supports integration into factory automation systems.



  • Enhanced traceability helps visualize factory-wide operation - MES Interface Library

E80 Series CNC is equipped with the MES interface function, through which the CNC automatically sends SQL statements to the production control system database upon completion of cutting or occurrence of an alarm. This can significantly increase traceability throughout the factory. This transparency helps optimize production planning and management. Quality control can also be easier through visualization of alarm history and the production results based on the basic unit specific to each workpiece. Moreover, when control is combined with the EcoMonitorLight power consumption monitor and the thermal sensor unit, operators can monitor not only CNC status, but also the energy consumed by the machines.

E80 - Mitsubishi Electric CNC



  • Remote confirmation of machine status - Email Notification to Operator

This sends you an e-mail about machine condition automatically at the specified timing to a computer, tablet or smartphone. No dedicated line is needed, so you can set up easily. Machine condition can be monitored at anytime, anywhere. This helps you to deal with emergent situations timely, leading to shorter downtime and higher productivity.

E80 - Mitsubishi Electric CNC



  • Wider compatibility with peripheral devices - Connection to Various of Field Networks

By inserting an optional card in the slot on the back of the display unit, CNC can support CC-Link (master/local), PROFIBUS-DP (master), and EtherNet/IP connections, making it possible to connect with many peripheral devices through a wide range of field networks.

E80 - Mitsubishi Electric CNC
