Pilz PNOZmulti 2

Pilz PNOZmulti 2

Small controller

The configurable safe small controllers PNOZmulti 2 are used in virtually every area of plant and mechanical engineering. PNOZmulti 2 can be used to monitor safety functions safely and to perform standard control functions economically.

  • Характеристики

• Certified hardware and software for reliable operation
• Easy to configure thanks to user-friendly software tools
• Short time-to-market as the inputs and outputs are freely configurable
• The appropriate modules for every requirement – flexible, simple, economical to expand
• Comprehensive diagnostic options mean short downtimes
• Fast commissioning thanks to simple wiring with plug-in terminals
• Maximum safety – up to PL e and SIL CL 3, depending on the application



  • Modular design

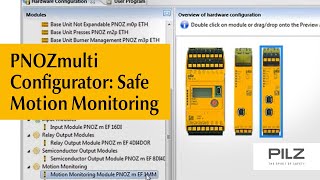

The configurable, safe small controllers PNOZmulti 2 have a modular design: select a base unit and then choose the required number of expansion modules to meet the needs of your application. Both the hardware and the application configuration are created In the software tool PNOZmulti Configurator. Once completed, the configuration is loaded on to a program memory and inserted into the base unit. The configuration can be simulated offline prior to commissioning - no need for hardware.



  • Съответствие със стандарти

• NFPA 85/86
• EN 50156
• EN 298
• IEC 62061
• EN ISO 13849-1



  • Основни параметри:

Номинално напрежение 24 VDC
Работна температура 0°C…+60°C
Работна височина 0...2000 m (6561.6 ft)

Сертификати на продукти

CE marking
cULus Listed
EAC
